DYN4927WP

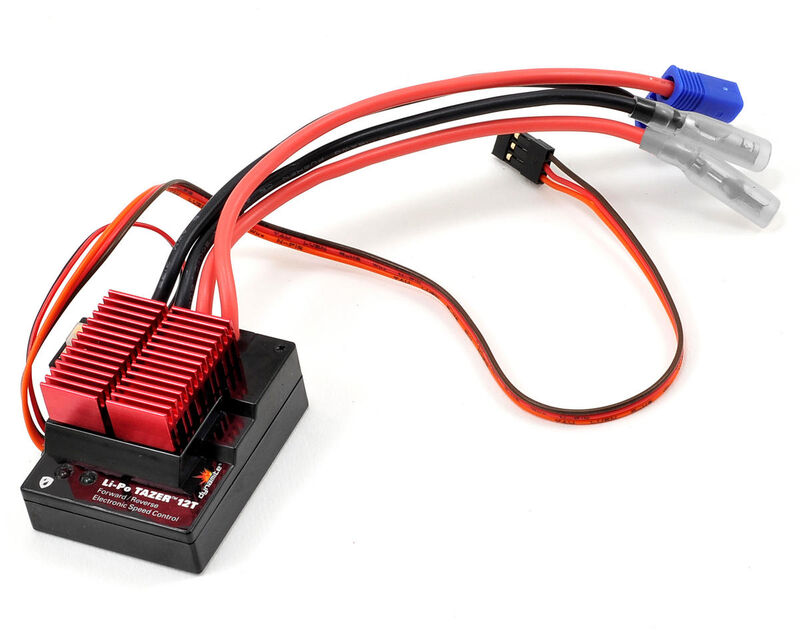

Specifications ESC (variador):
Forward: Yes
Time Delay Brake: Yes
Continuous Maximum Current: Forward: 38A, Reverse: 19A
Input Voltage: 4.8 - 8.4V
Input Connector Types: EC3
Output Connector Types: 3.5mm Bullet
Motor Limit: 12T
Momentary Peak Current: Forward: 380A, Reverse: 190A
Length: 1.83 in (46.4mm)
Width: 1.45 in (36.9mm)
Height: 1.1 in (28.25mm)
Weight: 2.7 oz (76g)
BEC Voltage: 5.6V
PWM Frequency: 1 kHz
Full On Resistance: 0.0028 ohm

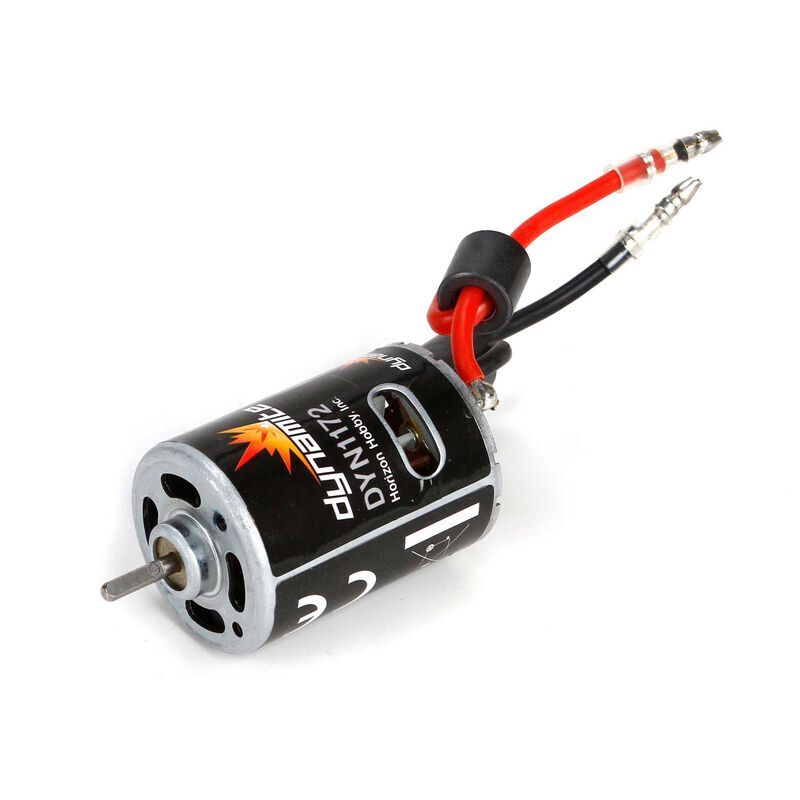

Specifications motor:
Type: Brushed
Size: 540
Bearings or Bushings: Bushing
# of Turns/Windings: 15T
Timing: No
Voltage: 4.8 - 9.6V
Cells: 4-8 Ni-Cd/Ni-MH or 2S Li-Po
Overall Diameter: 1.42 inch (36mm)
Shaft Diameter: .125" (3.175mm)
Shaft Length: 0.60 inch (15.5mm)
Overall Length: 1.98 inch (50mm)
