COMBOCRAWLERBASIC

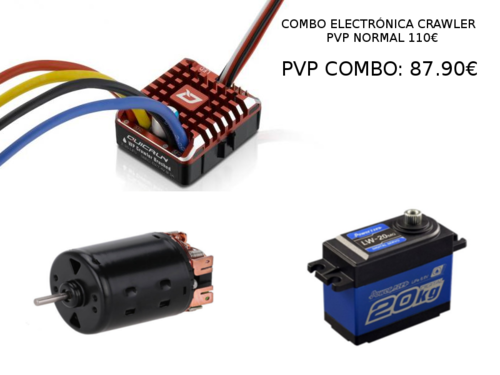

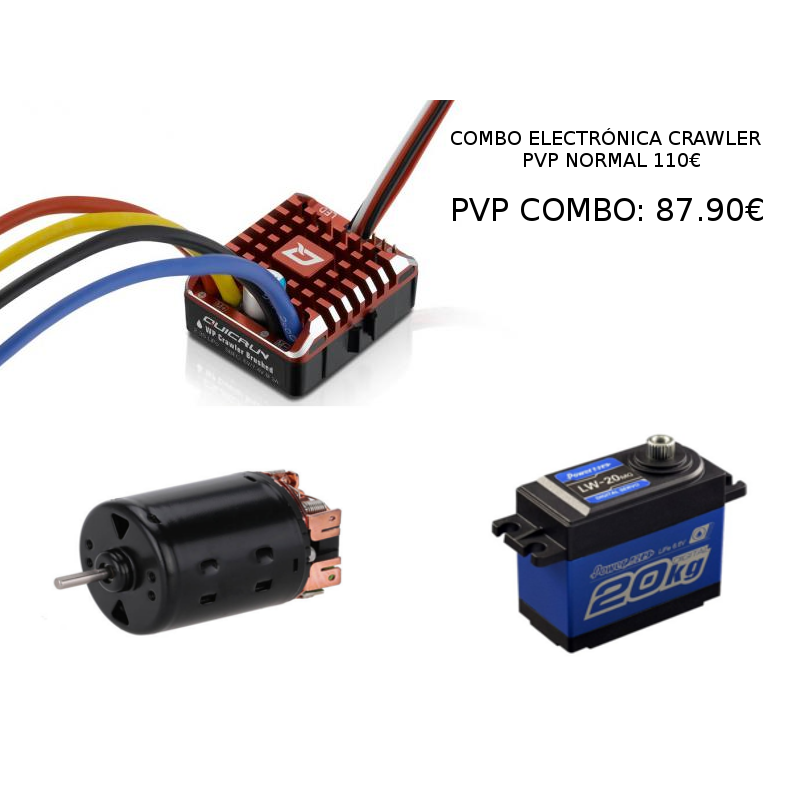

El combo incluye estos tres artículos:
VARIADOR QUICRUN 80A CRAWLER HOBBYWING
Type
Scale - 1/8th & 1/10th
Brushed/Brushless - Brushed
Waterproof - Waterproof
Specifications
Cont./Peak Current - 80A/400A
Input Voltage - 2-3S Lipo/5-9 Cell NiMH
BEC Output - Switch Mode: 6V/7.4V@3A
Wires & Connectors
Input Wires - Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Output Wires - Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
Input Connectors - XT60 Connectors
Output Connectors - No
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Not Supported
WiFi Module - Not Supported
Program Port - Separate Program Port
Firmware
Firmware Upgrade - Not Supported
Size & Weight
Size - 36.2x31.6x17.0mm
Weight - 58.5g (w/Wires)
Applications
Motors - Brushed Motor (540/550/775 size motors)
Vehicles - 1/8th,1/10th Rock Crawlers
KV Rating/T Count - Brushed Motor Limit with 2S LiPo/6S NiMH: =10T or RPM<30000@7.4V
Brushed Motor Limit with 3S LiPo/9S NiMH: =16T or RPM<20000@7.4V
MOTOR:
BRUSHED 27T VENTILADO ESPECIAL CRAWLERS
SERVO:
LW20MG
Engranajes metálicos, motor coreless y funcionamiento desde 4.8-6.6V lo hacen un servo todoterreno.
Detalles Técnicos:
Torque a 4.8V: 16.5kg-cm
Torque a 6.6V: 20kg-cm
Velocidad 4.8V: 0.18s/60º
Velocidad 6.0V: 0.16s/60º
Peso: 60g
Doble rodamiento
Engranajes de cobre y aluminio
Tamaño: 40.7 x 20.5 x 39.5mm
