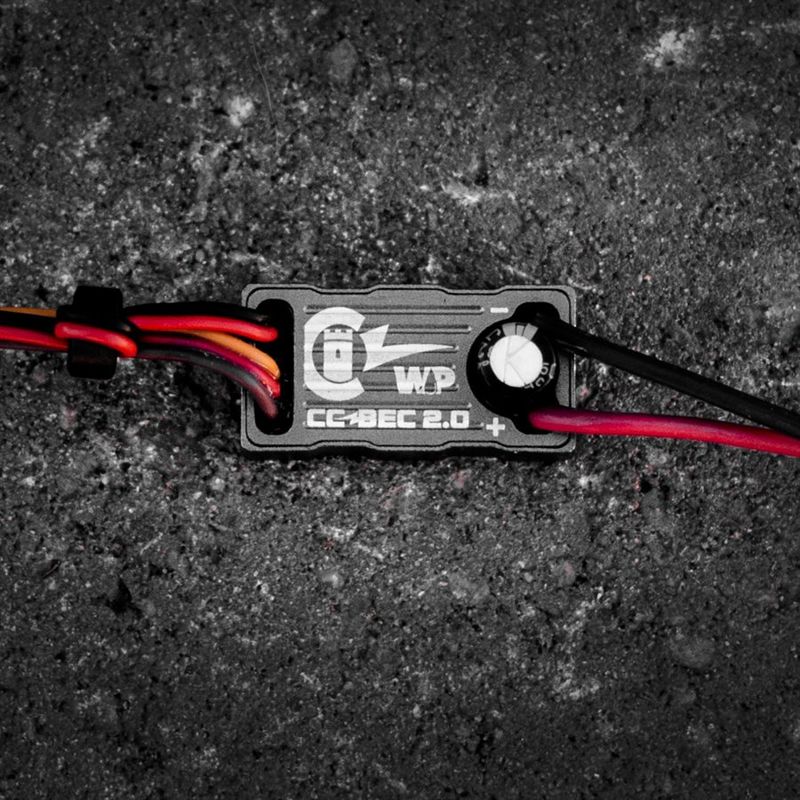

CC BEC 2.0 15A 14S WP CASTLE CREATIONS
CC010015300
Bec extremadamente potente, ideal para su uso en aviones con servos potentes o en direcciones de Crawler.
Los BEC son pequeños dispositivos que eliminan la necesidad de usar batería para el receptor y servos.Toman el mayor voltaje de las baterías del motor y la reducen a un nivel de tensión optimo para su receptor y servos.
| CC BEC Comparison Chart | |
|---|---|
| CC BEC 2.0 WP | |
| Part Number: | 010-0153-00 |
| Common applications: | Crawlers, Marine, Sea Planes, UAS, Industrial |
| Waterproof: | Yes |
| Peak current: | 15A (dependent upon input and output voltage) |
| Continuous current1: | 4.75- 6.0V output: 10A 6.25-8.5V output: 9A 8.75-10.0V output: 8A 10.25-12.0V output: 7A |
| Max volts: | Surface 12S (50.4V) Air (w/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
| Adjustable output voltage2: | 4.75 to 12V |
| Default setting: | 5.25V |
| Length: | 1.37" (35mm) |
| Width: | 0.69" (18mm) |
| Height: | 0.75" (19mm) |
| Weight3: | 1.0 oz. (28g) |
Footnotes:
1. Ratings are determined with a 5mph airflow at 25° C (77° F). Ratings for CC BEC 2.0 are dependent on both input and output voltage as follows:
| CC BEC 2.0 WP (010-0153-00) Peak Current Rating Detail | |||||||
|---|---|---|---|---|---|---|---|
| Output Voltage Setting | |||||||
| LiPo Cells | < 5.5V | 6V | 7V | 8V | 9V | 10 & 11V | 12V |
| 8S-14S | 15A | 14A | 13A | 12A | 11A | 10A | 9A |
| 4S-6S | 14A | 13A | 12A | 12A | 11A | 10A | 9A |
| 3S | 13A | 12A | 11A | 11A | 10A | - | - |
| 2S | 12A | 11A | 11A | - | - | - | - |
2. Adjustable Output Voltage may be set with Castle Link (sold separately).
3. Weight with full length wires, power wires may be shortened to save weight depending on application.
