PowerBox Competition
PowerBox Competition
PowerBox Competition
PowerBox Competition



PowerBox Competition

 Order No.: 4430

The PowerBox Competition 2010 is the logical development of the original Competition power supply system with regulated output voltage, which was first introduced back in 2003. The range of applications for this backer is virtually limitless due to the large number of integral features.

Price € 319,-
incl. VAT
plus shipping costs
Quantity



 Add to Basket


North and South America and Canada:


 Go to PowerBox Americas Shop





Additonal Views
Open zoomed view
PowerBox Competition

PowerBox Competition

PowerBox Competition

PowerBox Competition


Features

  • Servo-Match function: servo centre, end-points and reverse for 4 channels and 8 servos
  • Graphic OLED screen with 128 x 64 pixels
  • Extremely user-friendly menu-based programming using the SensorSwitch
  • 12 channels
  • Signal amplification and interference suppression for all 18 outputs
  • Variable frame rate, range 9ms – 21ms
  • 16-bit processor for fast, high-resolution signal processing
  • double-regulated output voltages for receivers and servos
  • regulated voltage with selection facility, 5.9V or 7.4V
  • Connection facilities for Spektrum, HoTT and Multiplex MSB downlink bus systems
  • Direct transmission of battery voltage and capacity to the transmitter
  • Separate voltage and capacity display for each battery
  • Minimum value memory alerts the user to voltage collapses
  • Large-area heat-sinks for high regulator performance
  • Regulator monitoring, regulator error indicator
  • Support for three battery types: LiPo, NiMH / NiCd, LiFePo
  • Suppression of any servo feedback currents which may occur
  • Updateable with PowerBox Systems USB Interface connectors


Technical Data

Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 130mA
Current drain Standby 15µA
Maximum load current Peak 2x20A
Drop-out voltage 0.3V
Output voltage 5.9V and/or 7.4V regulated
Signal input PWM
Channels 12
Servo sockets 21
Programmable servo outputs 4 channels, 8 servos
Servo signal resolution 0.5µs
Signal frame rate 9ms, 12ms, 15ms, 18ms, 21ms
Screen OLED 128 x 64 pixels, graphic
Supported telemetry systems Spektrum, HoTT, M-Link
Dimensions 110 x 72 x 24 mm
Weight 115g
Weight Sensor Switch 15g
Temperature range -30°C to +75°C

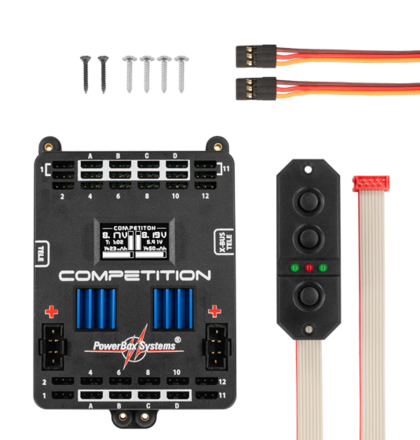

Contenido

  • PowerBox Competition
  • 12 patch-leads
  • SensorSwitch
  • 4 rubber grommets and brass spacer sleeves, factory-fitted
  • 4 retaining screws
  • Operating instructions in german and english
