OS15490

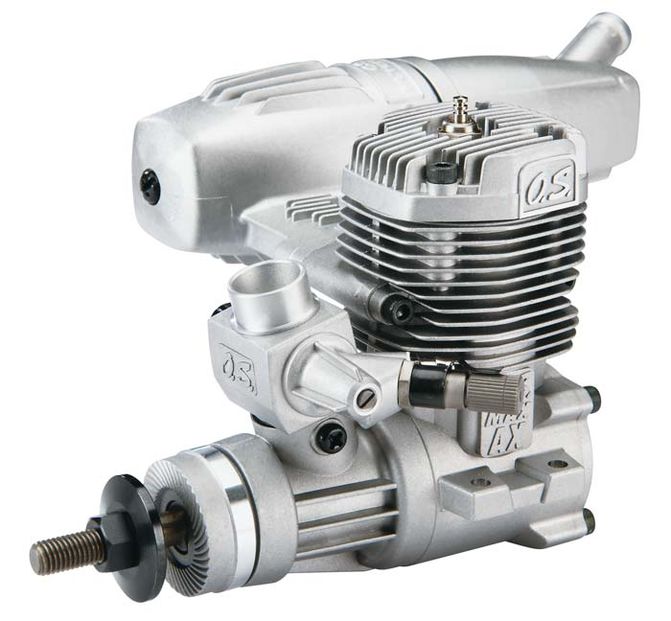

Para funcionar con Nitro al 5-20%, motor glow para aviones. Incluye escape E3071
Incluye tornillería, instrucciones y una bujía.
Especificaciones técnicas:
PRESUPUESTO
Desplazamiento: 0.455 cu en (7.45cc)
Diámetro: 0.866 "(22 mm)
Carrera: 0.772 "(19.6 mm)
RPM : 2000-17000
Potencia de salida: 1.65PS, 1.67HP / 16000 RPM
Peso: (378 g) sin silenciador
Hélices recomendadas: 10.5x6, 11x6-8, 12x6-7, use 10x6 para el rodaje
Tamaño del cigüeñal: 1 / 4-28
Distance from remote needle to end of crankshaft: 4.7" (119.4mm)
Distance from center of engine to drive hub: 2.4" (61mm)
Distance from center of engine to end of crankshaft: 3.4" (87.6mm)
Distance/crankshaft center to muffler exhaust outlet: 3.9" (100.5mm)
Height from crankcase bottom to top of cylinder head: 3.3" (85.2mm)
Height/crankshaft center to top of cylinder head: 2.6" (67.4mm)
Width including mounting tabs: 2" (50.8mm)
Width not including mounting tabs: 1.4" (35.6mm)
Width/mounting hole centers same side: .69" (17.5mm)
Width/mounting hole centers opposite side: 1.7" (44mm)
Diameter of muffler body: 1.5" (38.1mm)
Angle of muffler in relation to engine: 4°
Carburetor Settings;
Needle Valve: 1½ to 2 turns out from closed position
Low Speed Needle (aka: Mixture Control Valve): Close throttle rotor
gradually from the fully opened position until it is just fully
closed (do not turn further).
Screw in the Mixture Control Screw until it stops. Now open the
Mixture Control Screw approx. one turn.
