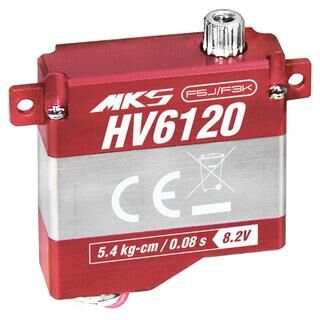

MKS HV6120 SERVO 5.4KG 0.08S 11G F5J F3J F3K
MKSS0022014
El mejor servo para alerones y flaps en aviones y veleros
Estado: NUEVOCONSULTAR STOCK Y PRECIO
59,99 €
21.00% IVA incluido
MKS HV6120 SERVO 5.4KG 0.08S 11G

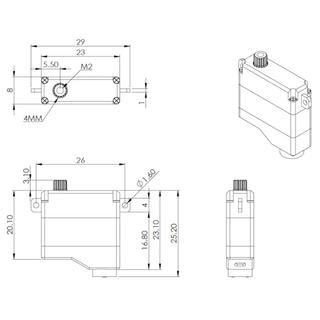

Dimensiones: 23 x 8 x 25.2 mm
Torque (3.7V): 2.54 kg-cm /
Torque (4.8V): 3.3 kg-cm
Torque (6.0V): 4.1 kg-cm
Torque (7.4V): 5.0 kg-cm
Torque (8.2V): 5.4 kg-cm
Speed: 0.180s (3.7V) / 0.139s (4.8V) / 0.110s (6.0V) / 0.089s (7.4V) / 0.080s (8.2V)
Weight: 11 g /
| SERVO SPECIFICATION | |
| Torque (kg-cm) | 2.54 (3.7V) / 3.3 (4.8V) / 4.1 (6.0V) / 5.0 (7.4V) / 5.4 (8.2V) |
| Torque (oz-in) | 35.2 (3.7V) / 45.8 (4.8V) / 56.9 (6.0V) / 69.4 (7.4V) / 74.9 (8.2V) |
| Speed | 0.180s (3.7V) / 0.139s (4.8V) / 0.110s (6.0V) / 0.089s (7.4V) / 0.080s (8.2V) |
| Stall Current (at locked load) | 0.85A (3.7V) / 1.1A (4.8V) / 1.37A (6.0V) / 1.69A (7.4V) / 1.87A (8.2V) |
| Working Voltage | 3.5V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2* Ball bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
