MERCEDES BENZ G-CLASS G500 CC-02 1/10 KIT TAMIYA

KIT PARA MONTAR. REQUIERE MONTAJE Y PINTURA. INCLUYE VARIADOR (ESC) Y MOTOR, NECESITA (NO INCLUIDO):

- SISTEMA 2 CANALES O MÁS DE EMISORA-RECEPTOR COMPATIBLE

- SERVO DE DIRECCIÓN, RECOMENDADO DE ALTO TORQUE Y ENGRANAJES METÁLICOS

- BATERÍA Y CARGADOR COMPATIBLE.

About the Model
• This is a 1/10 scale R/C model assembly kit. Length: 455mm, width: 196mm, height: 207mm. Wheelbase:
267mm.
• TLU-01 LED Light Unit and LEDs are included for export only! LED attachment parts are also included.

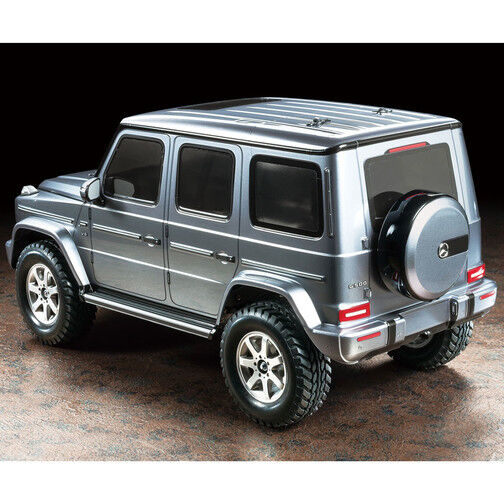

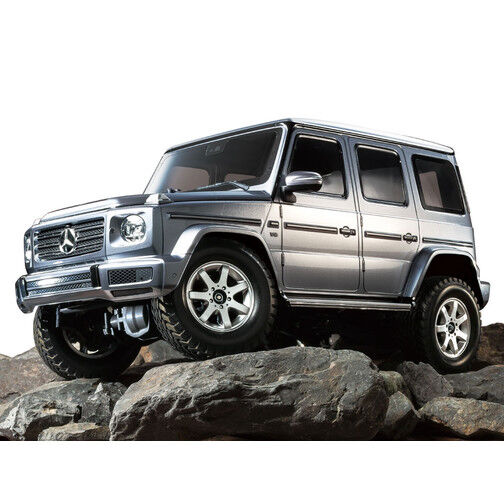

• The boxy form of the G 500 is recreated accurately in polycarbonate, with separately molded parts included
for the front grille, side mirrors and spare tire cover.

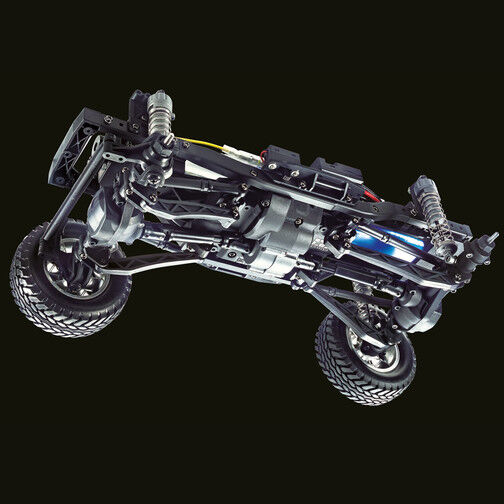

• Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is
inspired by full-size vehicles and is the base for its superior durability.

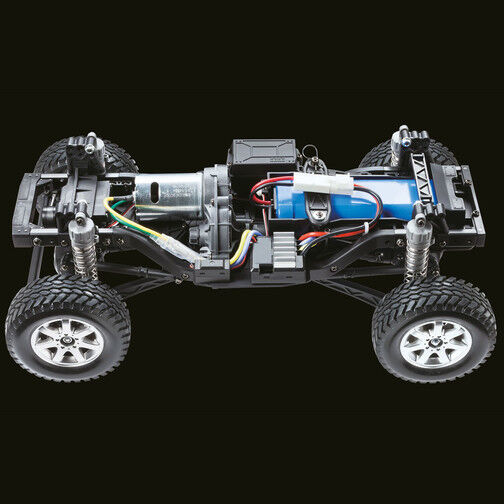

• A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer
case, and propeller shafts transmitting power to the differential gears front and rear.
• Twenty gear ratios between 11.09:1 and 29.28:1 are possible using separately sold pinion gears, for some
serious fine-tuning!
• 4-link rigid suspension is employed front and rear, with CVA oil dampers.
See over the page for a more detailed introduction to the CC-02!
