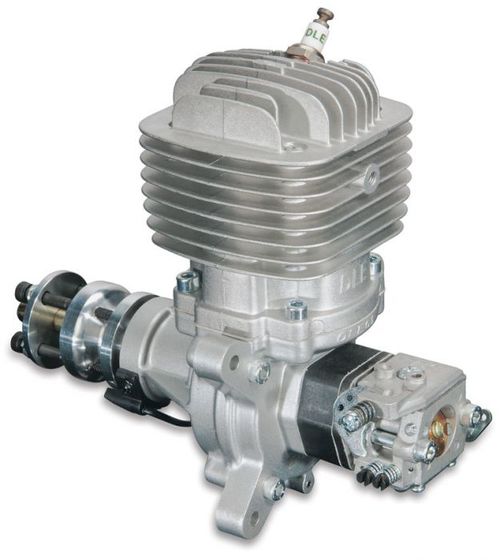

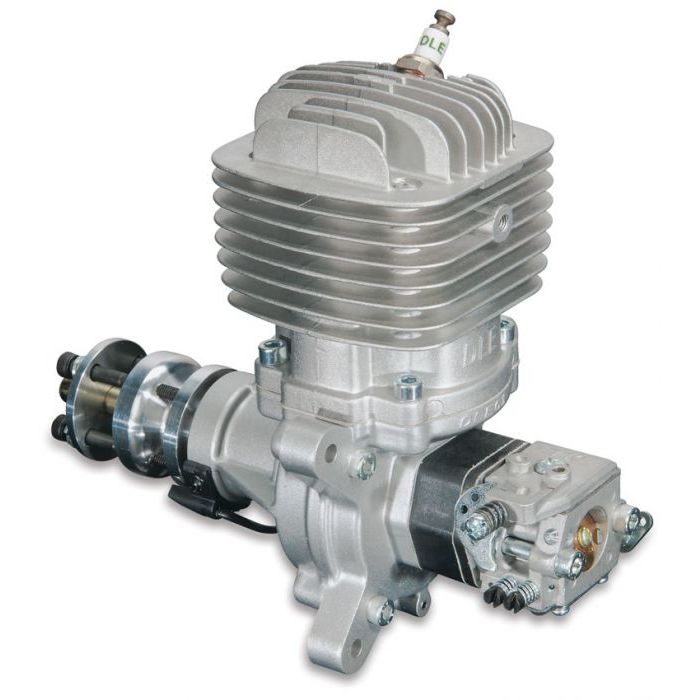

DLE61 MOTOR IGNICION ELECTRONICA Y ESCAPE

DESCRIPTION

High power—low weight

Innovation is excellence; so, when DLE added innovations that included improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 less than four pounds and cranks out over six horsepower from a durable and long-lasting engine.

Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you'll find.

FEATURES:

• Efficient, light design for high power-to-weight ratio
• Light piston for fast acceleration, excellent compression and low vibration
• CNC-machined parts for high performance and long life
• Enlarged crankshaft bearings
• Increased piston/cylinder contact area
• Two petal reed valve
• Muffler included for optimized power
• Spark plug
• Spiral wire wrap

Specifications:
Stock Number: DLEG0061
Displacement: 61.0 cc (3.7 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 3.86 lb (1.75 kg)
Output: 6 hp @ 7,500 rpm
Includes: Electronic ignition module, muffler, spark plug, standoffs, spiral wire wrap & connector safety clips.
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 22x10, 23x8, 23x10, 24x8

DLE-61 Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack ((Voltage regulator required if LiPo or LiFe pack is used.)
Gas/Oil Mix: 30:1
Replacement Spark Plug: DLEG6126
Static Thrust: 33 lb (15kg) @ 328 ft (100m) altitude; 28.7 lb (13 kg) @ 5,900 ft (1.8 km) altitude
Weight Breakdown: Engine: 3.02 lb (1.373 kg); Muffler: 3.9 oz (110 g); Ignition Module: 3.9 oz (110 g); Mount: 4.5 oz (128 g); Miscellaneous: 1.2 oz (34 g)
