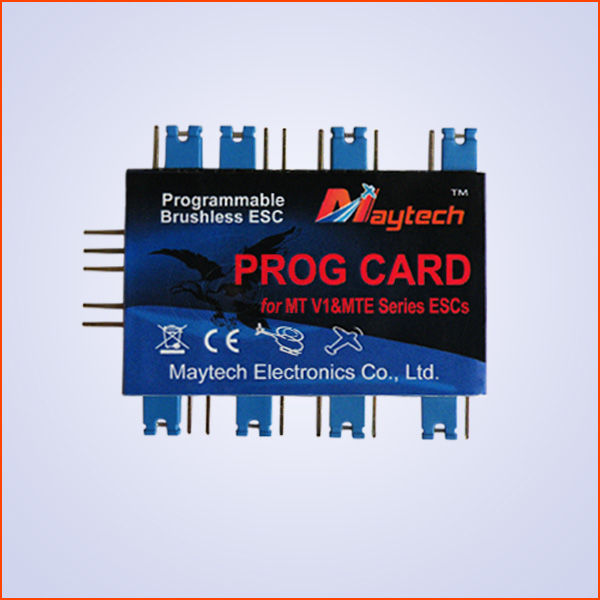

MAYPROGCARDHS
Especificaciones:
Net Weight ……………………………………6.5g
Size……………………………………………. 49(L) x30 (W)mm
Operation
1). Disconnect the main power pack from the ESC
2) Plug JR connector (part of ESC) to the position “P” on Prog-Card (Refer to the pic as below).

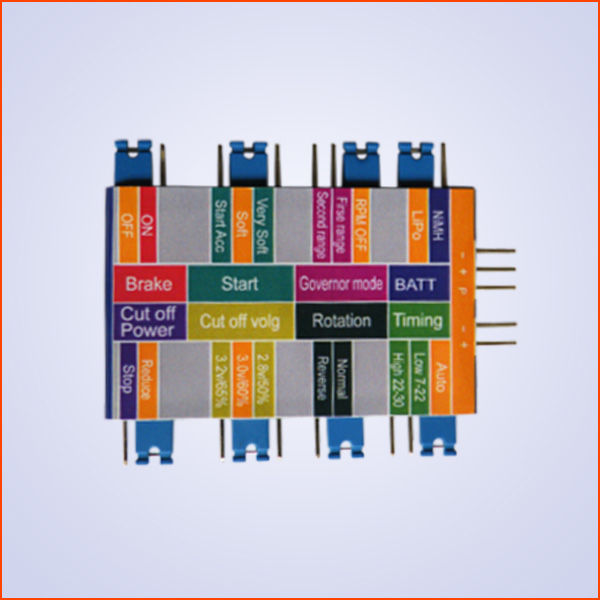

3) Put the seven blue jumper connectors to the position (parameter) you selected.
4) Connect the power pack to the ESC; One long “beep” will be heard, which means your setting has been saved.
5) Re-disconnect the main power pack to the ESC, the setup will be saved!
If the ESC is marked with “BEC OPTO”, that means this ESC hasn’t a built-in BEC, so you must use an additional battery pack (4.8-6V) to power the program card, and usually a receiver battery pack is a good choice. By the way, every high voltage ESC (Supports 5-12 cells Lipo battery) hasn’t built-in BEC.
1) Disconnect the main power pack from the ESC
2) Connect the receiver battery pack (4.8-6V) to the program card at the top right corner position. (Refer to the pic as below)
3) Plug JR connector (part of ESC) to the position “P” on Prog-Card (Refer to the pic as below).
4) Put the seven blue jumper connectors to the position (parameter) you selected.
5) Connect the power pack to the ESC; One long “beep” will be heard, which means your setting has been saved.
6) Re-disconnect the main power pack to the ESC, the setup will be saved!
NOTE: Don’t use a battery pack higher than 6V to supply the program card!
