TARJETA PROGRAMADORA HOBBYWING 2 EN 1 PROFESIONAL V1,02

LXEM003

Estado: NUEVOCONSULTAR STOCK Y PRECIO

24,90 €

21.00% IVA incluido

TARJETA PROGRAMADORA HOBBYWING 2 EN 1 PROFESIONAL V1,03

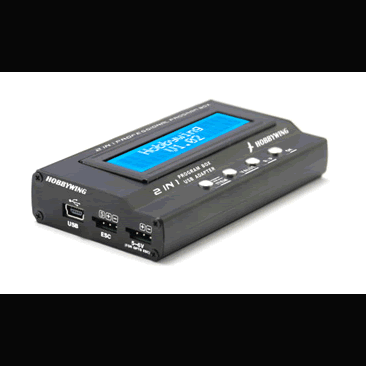

This Advanced Program Box is used to set the programmable parameters of brushless ESC, it has a 16*2 characters LCD (Liquid Crystal Display) to get a friendly user interface, so you can set the programmable parameters very easily. It is pocket-sized, so you can bring it to the racing or flying field conveniently.

This program card is suitable for the following ESCs:

1. XERUN Series Car ESC (Version 2.0)

2. EZRUN Series Car ESC (Version 2.0)

3. PLATINUM Series Helicopter/Aircraft ESC

1 Working Mode

1.1 Working as an individual device to set the ESC, the value of each parameter is displayed on its own LCD.
1.2 Working as an USB adapter to link the ESC with a PC, and the user can update the firmware of the ESC or set the ESC by the special application software on PC.

2 Specifications

2.1 Size: 90mm (L) * 51mm (W) * 17mm (H)

2.2 Weight: 84g.

2.3 Input Voltage: 4.8-6V (If the ESC hasn?t a built-in BEC, you must use an additional battery pack to supply the program box)

3 Programmable Items

A)  The programmable items for the CAR ESC are:
3.1    Running Mode
3.2    Drag Brake Force
3.3    Low Voltage Cut-Off Threshold
3.4    Start Mode
3.5    Maximum Brake Force
3.6    Maximum Reverse Force
3.7    Initial Brake Force
3.8    Throttle Neutral Range
3.9    Timing
3.10 Over-Heat Protection
3.11    Motor Rotation
3.12    Lipo Cells

B)  The programmable items for the AIRCRAFT AND HELICOPTER ESC are:
3.1    Brake Setting
3.2    Battery Type
3.3    Low Voltage Protection Mode (Cutoff Mode)
3.4    Low Voltage Protection Threshold (Cutoff Threshold)
3.5    Start Mode
3.6    Timing
3.7    Governor Mode
3.8    Motor Type
3.9    PWM Frequency
3.10  Built-In BEC Output
3.11  Motor Load
3.12  Lipo Cells

4 Application Software of the Advanced Professional LCD Program Box

Marca

HOBBYWING

Familias relacionadas

MOTORES Y ACCESORIOS Motores Electricos y Accesorios Variadores ESC Coche

Fecha de lanzamiento

Miércoles, 17 Septiembre 2014
