TARJETA LCD HARRIER EXTREM MAYTECH

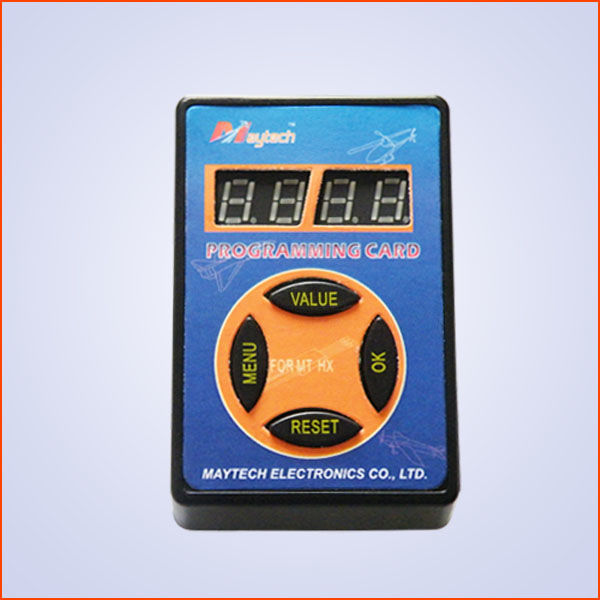

Tarjeta de programacion con pantalla LCD para variadores Maytech Extreme

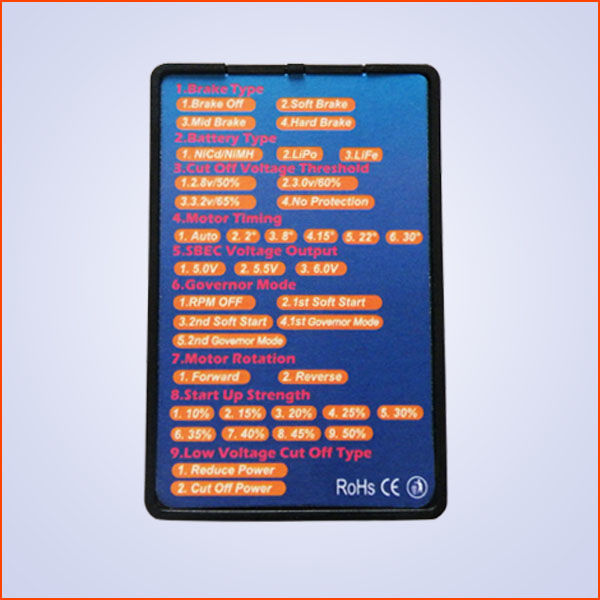

Programming Parameters on LED Prog-Card:

1. Brake Type 1-Brake Off 2-Soft Brake 3-Mid Brake 4-Hard Brake
2. Battery Type 1-NiCd/NiMH 2-LiPo 3-LiFe
3. Cut Off Voltage 1-2.8V/50% 2-3.0V/60% 3-3.2V/65% 4-No Protection
4. Motor Timing 1-Auto 2-2° 3-8° 4-15° 5-22° 6-30°
5. SBEC Voltage Output 1-5.0V 2-5.5V 3-6.0V
6. Governor Mode 1-RPM OFF 2-1st Soft Start 3-2nd Soft Start 4-Governor Mode1 5-Governor Mode2
7. Motor Rotation 1-Forward 2-Reverse
8. Start Up Strength 1-10% 2-15% 3-20% 4-25% 5-30% 6-35% 7-40% 8-45% 9-50%
9. Low Voltage Cut Off 1-Reduce Power 2-Cut Off Power

Specifications:

Net Weight ……………………………………25g

Size…………………………………………….70x45x15mm
